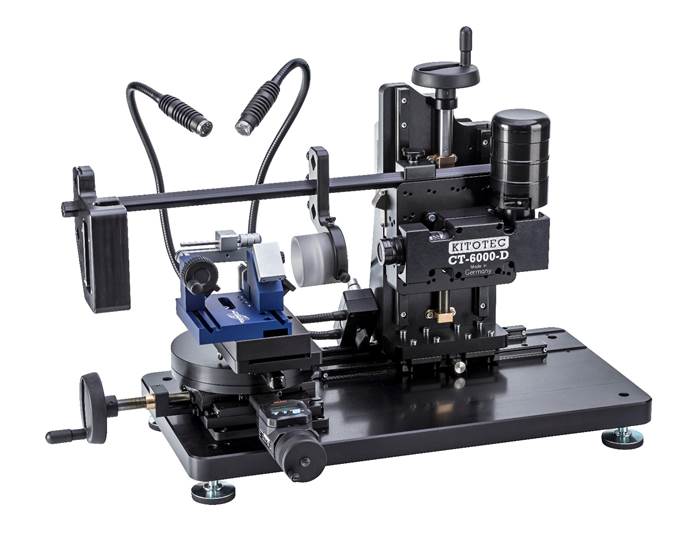

CT-6000D Tools Measuring System









The device for the small tools. The measuring range is limited at 50 x 50 mm. The carrier plate can be rotated by 240 and shifted by 200 mm. All 90 , the dowel pin to be inserted. Measurement software, interface, micrometre heads, recording prism of white POM, steel Insertion prism, two U-bolts, LED cold light source, ring light and diffuser included.

As Measure system two 50 mm Mitutoyo Digimatic dial indicators are used with resolution 0.001 mm and data cable interface.

The tool holders figure at right, Rollomatic Concentricity Pro with the adapter plate can be ordered as an option. It is perfect for the positioning of small tools and, in conjunction with the image processing in the measurement software adding up images during rotation.
